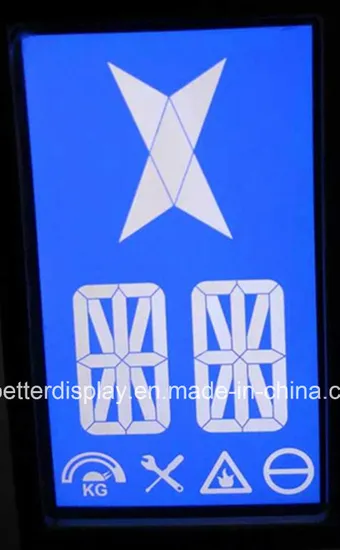

Better Display Customerized Va Type Mono for Customers

Basic Info.

Model NO.	8V32804
Touch Screen Type	Resistive
Type	Graphic
Response Time	1ms
Viewing Angle	TN＋FILM
Display Technology	STN
DOT-Matrix Graphic LCD Module Type	Row/Column-Driven
LCD Drive Mode	Multiplex Drive LCD Module
Customized	Customized
Display Type	Stn Type LCD Module
Display Drive	1/64
Drive Voltage	5.0V
Display Mode	Positive
Operate Temp	-10-60
Storge Temp	-20-70
Display Method	12864 DOT Matrix
Connnector	COB
Transport Package	Carton Box
Specification	ROHS
Trademark	Better
Origin	Shenzhen Guangdong
HS Code	8531200000
Production Capacity	100000

Product Description

2.GENERAL SPECIFICATION

128×64 dots displaySAM SUNG LCD driver:SBN6400G and SBN0064GInterface with 8-bit MPU (directly connected to M6800serial MPU)Display specificationDisplay dot: 128×64Display type: STN Display color-Display background color: Black-Yellow GreenPolarizer mode: Positive; TransflectiveViewing angle:6:00 Display RAM:8192 bitsMechanical characteristics (Unit: mm)External dimension: 93.0×70.0×12.5View area:72.0X40.0Dot size:0.48X0.48Dot pitch:0.52X0.52Weight: POWER: +5V

Pin NO.	Symbol	Function		Remark
1	Vss	Power Supply	0V
2	Vdd		+5V
3	Vo		For LCD	Variable
4	RS	Register Select (H: Data L: Instruction)
5	R/W	L:MPU to LCM H:LCM to MPU
6	E	Enable
7-14	DB0-DB7	Data Bit 0-7
15	CS1	Chip Select 1
16	CS2	Chip Select 2
17	/RST	RESET
18	Vee	Negative Power Supply
19	NC/A	Anode of LED Unit
20	NC/K	Cathode of LED Unit
